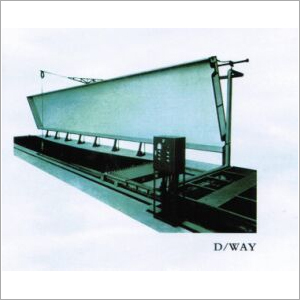

Depth Way Stretch Machine

Name: Depth Way Stretch Machine
Brand: TAIZHOU WINSTRONG SPECIAL NET CO., LTD.
Price: 55000 USD
Availability: InStock

Price 55000 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Depth Way Stretch Machine Specification

Product Type
Depth Way Stretch Machine

Knot Type
Double Knot

Material
Stainless Steel / Alloy

Length
Customized as per requirement

Color
Green

Style
Industrial/Heavy Duty

Mesh Size
Variable (as per design specification)

Depth
Up to 20 m (customizable)

Thickness
4 mm - 12 mm (as required)

Shape
Rectangular Structure

Warranty
1 year

Power Requirement
380V/50Hz/3Phase

Control System
PLC Control Panel

Operating Temperature
5C - 40C

Production Capacity
1000-5000 m2 per day

Tension System
Adjustable

Motor Power
5.5 kW

After Sales Service
Available

Automation
Semi Automatic / Fully Automatic (optional)

Weight
About 3500 kg

Drive System
Servo Motor and Gear Drive

Net Making Capability
Fish Net, Sports Net, Safety Net, & Others

Machine Size
Approx. 6000 x 2200 x 1800 mm

Depth Way Stretch Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
shanghai

Supply Ability
20 Sets Per Year

Delivery Time
60 Days

Sample Available
No

Packaging Details
In container

Certifications
ISO 9002

About Depth Way Stretch Machine

Our in-depth knowledge and industrial expertise has enabled us to emerge as a reputed manufacturer and supplier of Depth Way Stretch Machine. This machine is manufactured by our diligent workforce using best quality materials. This machine is used to stretch fishing net by depthwise. Working width and working length can be designed according to requirements. Depth Way Stretch Machine is well equipped with wedge clutch, automatic counter to control running condition and selvage device. It works under normal pressure, it's best suitable for PE net treatment . We offer this machine at cost effective prices

Features:

Longer working life
Easy to operate
Consumes low power

Main Technical Standards

Item/Model	HRD2000
Diag a net in the direction
Fixing width(mm)	20
Working length (mm)	Max 60MTR
Becime fixed speed(m/min)
Extenging/relax speed
Heat system	steam
Heat temperature(C)	100 C max
Electric heating power
Extension force(kg)	20000
Tension motor power(kw)	18.5
Total weight(kg)	25000

Advanced Net Making Precision

With its servo motor and gear drive, the Depth Way Stretch Machine ensures consistent mesh quality and knot integrity. The PLC control panel facilitates precise settings adjustment for mesh size, tension, and operational parameters, supporting customization for various net types and industrial needs.

Flexible, Heavy-Duty Performance

Manufactured with stainless steel and alloy, this machine is built for rugged use in commercial settings. Its customizable dimensions, mesh thickness, and depth adjustment capability make it a versatile solution for distributors, exporters, and suppliers handling varied net applications.

FAQ's of Depth Way Stretch Machine:

Q: How does the Depth Way Stretch Machine's automation mode benefit production?

A: The machine offers both semi-automatic and fully automatic options, enabling operators to choose the best mode for their workflow. Automation streamlines production, improves consistency, and reduces manual labor, leading to higher output and lower operational costs.

Q: What nets can be manufactured with this machine?

A: This machine is capable of producing fish nets, sports nets, safety nets, and other customized nets. It supports various mesh sizes, net thicknesses (from 4 mm to 12 mm), and double knot structures, making it adaptable for many industrial applications.

Q: When should I choose a fully automatic operation over semi-automatic?

A: Fully automatic mode is recommended for high volume, continuous production processes where minimizing manual intervention is key. Semi-automatic mode is suitable for specialized or smaller batches, providing greater control during custom net manufacturing.

Q: Where is the Depth Way Stretch Machine typically installed?

A: It is primarily installed in industrial net manufacturing facilities, production plants, and export-oriented units where heavy-duty net making is required. Its design is suitable for large-scale operations due to its size and production capacity.

Q: What is the net production process with this machine?

A: The net production process involves feeding raw material into the machine, where the PLC-control system governs mesh forming, knotting with a double knot system, tension adjustment, and mesh cutting. The finished net is then collected for further processing or packaging.

Q: How is the machine customized to meet specific requirements?

A: The machine's length, mesh size, net depth, and thickness can all be tailored as per customer specifications. Settings on the PLC control panel are adjusted according to design requirements, ensuring a fully customized output.

Q: What after-sales benefits does the manufacturer provide?

A: The manufacturer offers comprehensive after-sales service, including installation assistance, operator training, maintenance support, and a 1-year warranty, ensuring reliable operation and ongoing customer satisfaction.
