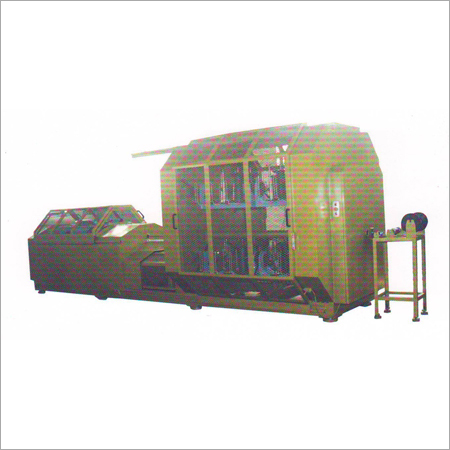

Rope Making Machine

About Rope Making Machine

Our consistent efforts and dedication enable us to carve a niche as a most trustworthy manufacturer and supplier of Rope Making Machine. This machine is manufactured by our diligent workforce using quality grade materials. Ideal for making rope, this machine is highly demanded in the market. We can customize this Rope Making Machine in different technical and power specifications. Moreover, we offer this machine at reasonable prices.

Usage: Extensively used for rope weaving purpose, this machine uses raw materials like jute, natural or palm fiber and flax

Features

• Rugged construction
• High working efficiency
• Easy to install

• The weaving or twisting direction during rope preparation can be selected as per its operators convenience
• The number of twisting turn and piled yarn can be adjusted
• Its weaving technique involves two times of after turn for each time of its rotating
• Apart from its high output level, this machine is appreciated for its minimal noise level and energy efficient operation

Technical Specifications

Mian Technical Standards
Item/Model	FZS7/3	FZS7/4	FZS13/3	FZS13/4	FZS20/3	FZS20/4	FZS26/3
Denmark type	M44		M55		M66		M77
Diam(mm)	3-7		4-13		4-13		12-26
Length of lay	7.7-39		13-64		13-64		30-96
Becime fixed speed(m/min)	10-21	10-21	10-21	10-21	10-21
Max	3x3	4x3	3x10	4x10	3x18	4x18	3x22	4x22
Diameterx traverse distance	250x300(mm)
diameter(mm)	220		275		400		500
Motor power(kw)	11		15		18.5		18.5
Total weight(kg)	2600	2900	4200	4700	5400	5900	22000

Versatile Rope Production

Engineered for adaptability, this machine can craft ropes from 4 mm to 24 mm in diameter using cotton, jute, plastic, PP, or HDPE. Three or four-strand options and the ability to produce either twisted or braided knots make it suitable for diverse industrial or commercial requirements. The rectangular base ensures stability during demanding operations.


Advanced Automation & Safety

Choose between semi-automatic and fully automatic models to match your operational demands. The digital control panel streamlines adjustments, while safety covers, emergency stop, and overload protection safeguard operators and machinery. The built-in automatic lubrication system reduces maintenance requirements and ensures smooth, error-free performance.


Robust Construction for Longevity

Crafted with a mild steel frame and stainless steel components at critical points, the machine is built to endure heavy, continuous use. Weighing around 1200 kg and colored for high visibility, it suits tough manufacturing floors while remaining easy to install, commission, and maintain. One-year warranty offers peace of mind.
