Raschel Warp Knitting Machine

Name: Raschel Warp Knitting Machine
Brand: TAIZHOU WINSTRONG SPECIAL NET CO., LTD.
Price: 50000 USD
Availability: InStock

Price 50000 USD ($)/ Set

Get a Price/Quote

MOQ : 1 Set

Raschel Warp Knitting Machine Specification

Product Type
Other

Knot Type
Knotless

Material
Steel, Aluminum Alloy & High Strength Plastic

Length
2800 mm

Color
Green

Style
Automatic

Mesh Size
Variable (customizable as per requirement)

Depth
Approx. 1500 mm

Thickness
Main Frame: 18 mm

Shape
Rectangular Base Structure

Warranty
1 year

Power Requirement
3 Phase, 380V/50Hz

Application
Net making for fishing nets, sports, agriculture, safety nets and industrial fabrics

Maximum Warp Beam Diameter
30 inches

Knitting Speed
Up to 800 rpm

Drive Motor Power
5.5 kW

Yarn Feeding
Universal type creel, 16-32 bars optional

Control System
PLC Controlled with Touch Panel

Working Width
130 inches (3300 mm)

Noise Level
Below 75 dB

Gauge
E6 - E18, as per customization

Weight
Approx. 3500 kg

Lubrication System
Automatic Oil Supply

Spare Parts Availability
Available on request

Installation Service
Provided by Manufacturer

Dimension (LxWxH)
2800 x 1500 x 2100 mm

Raschel Warp Knitting Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
shanghai

Supply Ability
100 Sets Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard Packaging

Certifications
ISO 9002

About Raschel Warp Knitting Machine

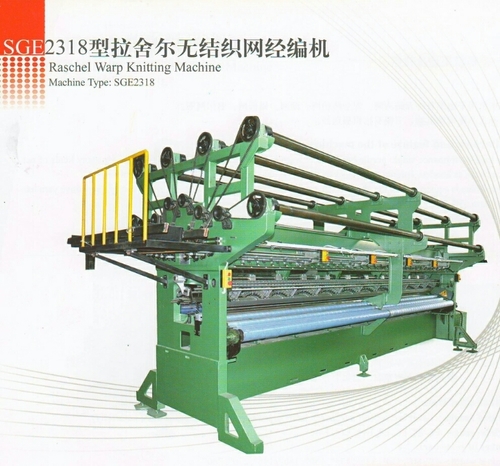

Raschel warp knitting machine

Purpose and feature of the machine

This high-performance single needle-bar Raschel warp knitting machine has been developed for many kinds of net fabrics such as knotless fishing net , protective net, sport net, shading net and purse net.
The machine is equipped with the oiled eccentric gearing to drive the knitting elements and the negative yarn let-off system which the run-in is controlled the yarn tension.

Efficient Net Manufacturing

Designed to operate at knitting speeds of up to 800 rpm, this Raschel Warp Knitting Machine boosts productivity while maintaining precision. Its wide, customizable working width and variable mesh sizes allow manufacturers to tailor products for diverse applications. The efficient universal yarn feeding and advanced drive motor minimize downtime.

User-Friendly Control and Reliable Performance

Equipped with an intuitive PLC control system and touch panel, the machine provides seamless operation and instant parameter adjustments. Automatic oil supply ensures smooth, low-maintenance running, while low noise levels (below 75 dB) create a safer, more comfortable work environment. Installation services and support from the manufacturer round out a robust, user-focused package.

FAQ's of Raschel Warp Knitting Machine:

Q: How does the automatic lubrication system of the Raschel Warp Knitting Machine work?

A: The machine's automatic oil supply system ensures a constant flow of lubricant to all vital moving parts, reducing maintenance frequency and enhancing operational durability by minimizing wear and tear.

Q: What applications can this warp knitting machine be used for?

A: This machine is specifically designed for net making, including fishing nets, sports nets, agricultural netting, safety nets, and various industrial fabrics. The customizable mesh size and strong, knotless construction make it suitable for a wide range of environments and purposes.

Q: When should I request spare parts for the machine?

A: Spare parts are available on request at any stage of the machine's lifecycle. It's advisable to periodically inspect wear parts and contact the manufacturer or distributor promptly for replacements to avoid unplanned downtime.

Q: Where can the Raschel Warp Knitting Machine be installed?

A: The machine is suitable for installation in textile factories or workshops with sufficient space to accommodate its dimensions (2800 x 1500 x 2100 mm), and should be powered by a 3 phase, 380V/50Hz electrical supply. The manufacturer provides professional installation services to ensure a smooth setup.

Q: What is the process for operating the machine?

A: Operation begins by setting up the universal yarn creel, choosing the appropriate warp beam and bar configuration (16-32 bars optional), and programming knitting parameters via the touch panel. The PLC system manages the sequence, while supervision is required to monitor performance and quality during production.

Q: How does the machine benefit net manufacturers?

A: Manufacturers benefit from high speed and efficiency, reduced manual intervention, customizable mesh size, and robust knotless net production. The automatic features, reliable control system, and optional accessories contribute to higher output and consistent product quality, while warranty and support offer peace of mind.
