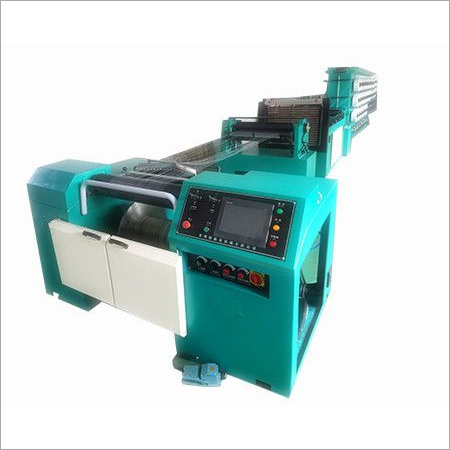

Wire dividing warping machine

Wire dividing warping machine
Wire dividing warping machine
Send Inquiry
Product Code : 328
Brand Name : SNC
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Set/Sets
  • Price
  • 10000-40000 USD ($)
  • Price Range
  • 10000.00 - 40000.00 USD ($)
Product Specifications
  • Product Type
  • 328
  • General Use
  • Wire dividing
  • Material
  • Other
  • Capacity
  • 20
  • Weight (kg)
  • 5 Tonne
  • Type
  • Wire Braiding Machine
  • Feature
  • High Speed
  • Warranty
  • 1 year
Product Description

328 type wire warping machine is suitable for wire(polyester,nylon and other materials)high performance warper.

Single strand wire consists of a plurality of filaments,the machine can greatly reduce customer costs of raw materials and production sites,improve production efficiency.

This machine is mainly composed of a yarn frame, a yarn guide device,Zhang ligun ,wire board,wire balance roller,monofilament warp up front.

Share of wire alone has a certain torque motor given initial tension;keep the tension by the tension roller,wire board for wire drawing;and control the balance of tension traction roller on silk filament; finally by the front of constant velocity winding.

The linear speed of the whole processing is constant,the tension is controllable and the tension is even


Main Features:

1.The new aircraft,the intelligent recognition of man-machine interface,a variety of data automatic storage.

2.Synchronous motor,speed tracking servo control,automatic control detection mechanism.

3.Computer real-time detection,intelligent control of tension.

4.Pan head loading pneumatic drive,linear lifting,stable motion,accurate positioning.

5.The spindle brake pneumatic control, quick and reliable braking.

6.Warping tension uniformly,the tension fluctuation is small,flat beam.

7.Online speed,with different speed,different roll diameter braking curve,ensure smooth parking yam.



The Main Technical Paramenters

1.Application:21x30,21x21,pan head(inches).

2.Wire separately:720 head(customized according to customer requirements).

3.The entire warp speed:650m/min.

4.Take the inititative to send yarn creel;

   (1)Wire:72 shares shares.

   (2)A single strand of wire torque motor control/

5.Balance roller:2

6.Drop stop.

7.The main motor power:7.5kw AC variable frequency control

8.The control mode:computer real-time control,touch screen man-machine interface.


Trade Information
  • FOB Port
  • China port
  • Payment Terms
  • Others, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)
  • Supply Ability
  • 20 SETS Per Month
  • Delivery Time
  • 60 Days
  • Packaging Details
  • In wooden cases Seaworthy packing
  • Main Export Market(s)
  • Africa, Eastern Europe, South America, North America
  • Main Domestic Market
  • All India
  • Certifications
  • ISO9001
